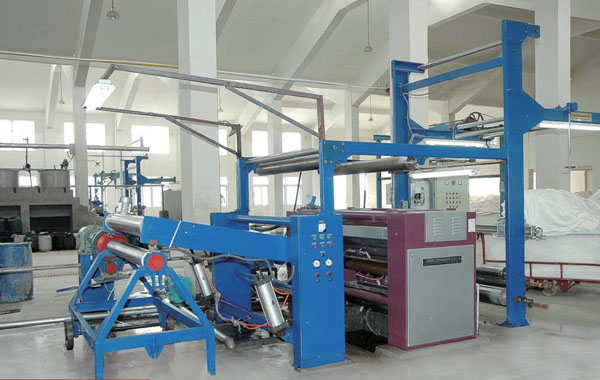

COLD PAD BATCH DYEING MACHINE



Product description:
It is used for cold pad dyeing process of cotton, flax and their blends.
FEATURES:

  • It adopts high-quality low liquid level control to minimize the minimize the liquid volume.
  • It is equipped with refrigerating device to delay the hydrolysis speed of reactive dye liquid.
  • The dye liquid will be cooled in feeding buffer tank.
  • The fabrics will be cooled by cooling rollers before entering the dyeing tank, the surface temperature will be reduced. The cooling of fabric surface is important as the cooling of dye liquid.
  • In order to keep the pick up rate and its uniformity, it adopts centre batching device, the special structure achieves touchless between fabric surface and batch package feeding roller.
  • The dyeing padder is uniform pressure padder and adopts oil pressure mode.

Flowcharts::

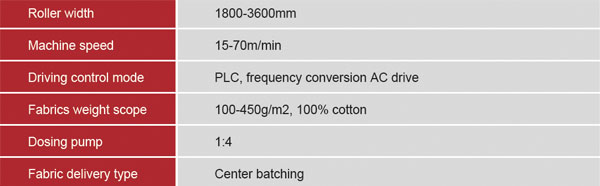

Technical specification:
